Products: UPS

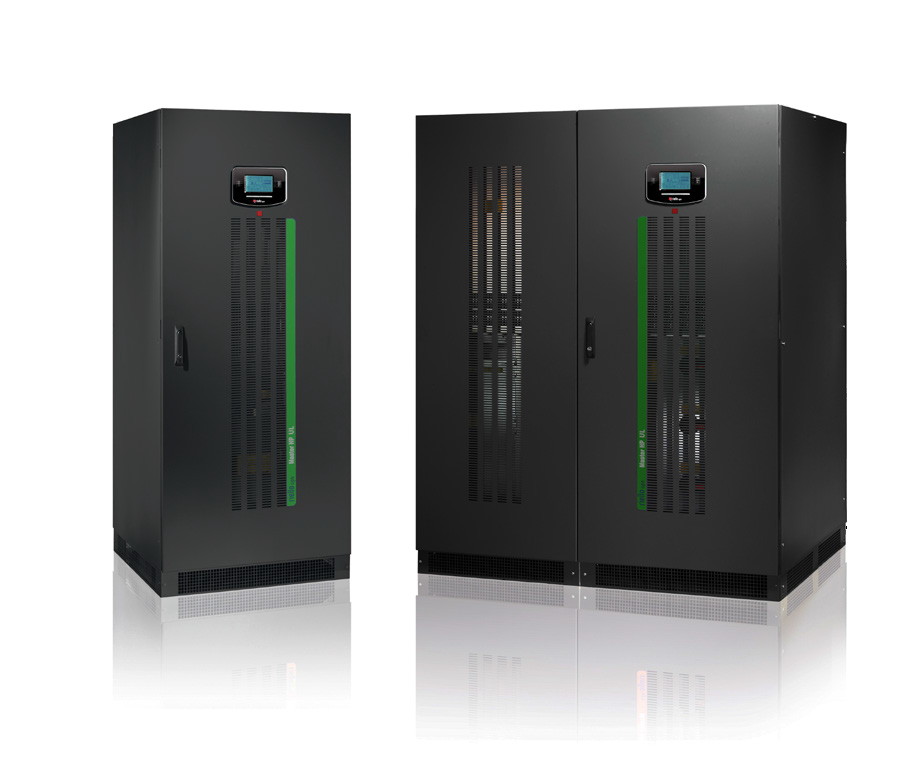

Master HP UL
Power Range:
65 - 500 kVA
3:3
Uninterrupted Quality Power For Mission Critical Applications.
HIGHLIGHTS
- High efficiency
- IGBT-based rectifier technology
- Compact, reliable and robust
- Galvanic isolation
- High overload capacity
The enhanced levels of quality, reliability and energy savings offered by the Master HP range of UPS have been extended to include a 480 Vac - 60 Hz version, certified as UL/CSA, with power ratings from 65 kVA to 500 kVA, in single module or parallel configuration.
IT managers, facility managers, and CTOs are under increasing pressure to reduce
downtime and assure that their critical loads are supplied with uninterrupted and
high quality power.
With this increasingly stringent requirement, Riello UPS has invested in power
solutions that meet strict demands; a commitment resulting in the launch of the
Master HP UL range.
More than just an innovative and technologically-advanced UPS, it is a leap into the
future of three-phase technology.
With its double conversion on-line technology based entirely on IGBT and digital signal processors (DSP), the Master HP UL range ensures maximum critical load protection, with VFI SS 111 classification (Voltage and Frequency Independent) in accordance with IEC EN 62040-3.
This range is designed using a new configuration that includes an IGBT sinusoidal input rectifier. Unique in its design, double conversion technology with galvanic isolated output guarantees a quality power supply that is completely protected from all electrical anomalies at the input.
ZERO IMPACT SOURCE
The Master HP UL series features the added advantages of the Zero Impact
Source formula offered by an IGBT-based rectifier assembly. This eliminates
problems connected with installation in networks with limited power
capacity, where the UPS is supplied by a generator set or anywhere there are
compatibility problems with loads that generate current harmonics. Master
MHT UL series UPS have zero impact on the power supply source, whether it is
a utility grid or generator set:
- Input current distortion < 3%
- Input power factor 0.99
- Power walk-in function that ensures progressive rectifier start up
- Start-up delay function, to restart the rectifiers when utility power is restored.
This provides savings in installation costs via:
- A smaller electrical infrastructure;
- Smaller circuit protection devices;
- Less wiring.
BATTERY CARE SYSTEM: MAXIMUM BATTERY CARE
Master HP UL series UPS include a range of features designed to prolong
battery life and reduce usage by using different recharging methods; deep
discharge protection, current limitation, and voltage compensation based on
ambient temperature.
FLEXIBILITY
Master HP UL is suitable for a wide range of applications including IT and
the most demanding industrial environments and processes. With several
operational configurations including ON LINE, ECO, SMART ACTIVE, STANDBY,
Frequency Converter and Voltage Regulation. A broad range of accessories and
options, complex configurations and system architectures can be achieved to
guarantee maximum power availability and the option to add new UPS without
interruption to site operations.
MAIN FEATURES
- Compact size: e.g.: only 2.330 square inches for the Master HP UL 500 kVA;
- Reduced weight for transformer based UPS;
- Double load protection, both electronic and galvanic, towards the battery.
The entire Master HP UL range is suitable for use in a wide range of applications. The Master HP can supply any type of load, e.g. servers, controls, lighting, capacitive, switch mode. Power supply reliability and availability are ensured for critical applications by distributed parallel configurations of up to 8 units, for redundant (N+1) or power parallel configurations.
ADVANCED SUPERVISION
The Master HP UPS has a front panel mounted graphic display
providing UPS information, measurements, status updates and alarms in
multiple languages, with waveform displays including voltage/current and
providing a kWh reading that can be used to measure IT loads and calculate a
Data Centre PUE (Power Usage Effectiveness) ratio.
Brochures and data sheets
Drawings

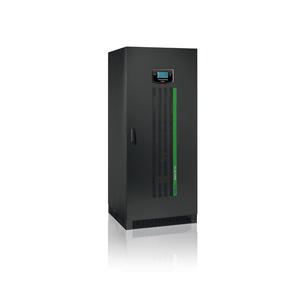

Master HP UL
65-125 kVA
Master HP UL
160-250 kVA

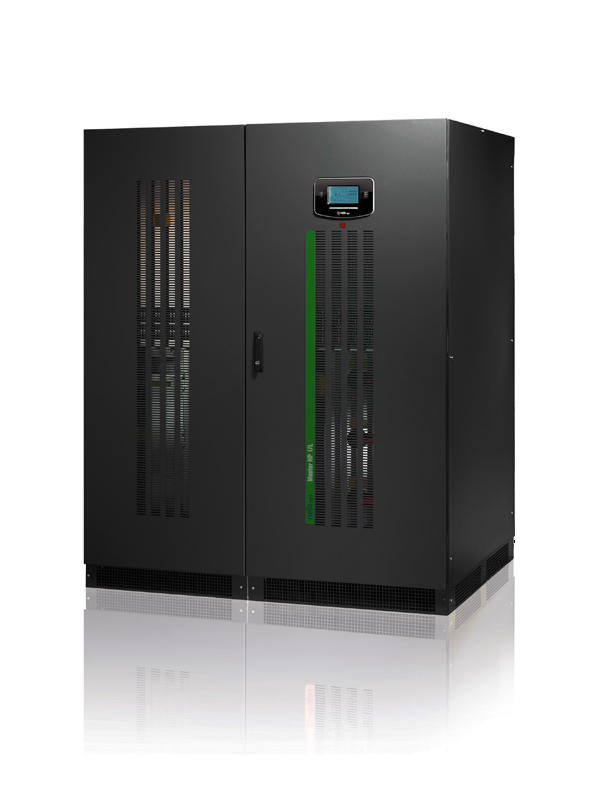

Master HP UL
300-500 kVA
Users Guides
User's manual Master HP UL
Battery Cabinet
User's manual Master HP UL
300-500 kVA
Technical specifications of the model
| Models | MHT 65 UL |
|---|---|
| INPUT | |
| Voltage | 480 V three-phase + N |
| Frequency | 45 / 65 Hz |
| Frequency tolerance | ±2% (selectable from ±1% to ±5% from front panel) |
| Power factor | >0.99 |
| Current distorsion | <3% THDi |
| Soft start | 0 - 100% in 125” (selectable) |
| OUTPUT and INVERTER OUTPUT | |
| Rated power | 65000 VA |
| Active power | 58500 W |
| Number phases | 3 + N |
| Crest factor (Ipeak/Irms) | 3:1 |
| Waveform | Sinusoidal |
| Static stability | ±1% |
| Dynamic stability | from ±5% to ±1% in 20 msec. |
| Frequency | 60 Hz |
| Frequency on battery operation | 0.05% |
| Frequency stability | 0.05% |
| Overload | 110% for 60 min.; 125% for 10 min.; 150% for 1 min. |
| RECTIFIER OUTPUT | |
| Ripple | Zero |
| BATTERIES | |
| Type | VRLA, Wet Cell, NiCd |
| ENVIRONMENTAL | |
| Color | Black |
| Remote controls | ESD and bypass (configurable) |
| Communication | Double RS232 + dry contacts + 2 slots for communications interface with SNMP, Modbus, and Bacnet Protocols |
| Protection rating | IP20 |
| Marks | UL |
| Other compliances | UL Standard 1778: 2nd ed. from 65 to 125 kVA, 5th ed. from 160 to 250 kVA; From 160 to 250 kVA: UL 60950-1 1 - Safety - Part 1: General National Electrical Code (NFPA-70); FCC Part 15 Subpart J class A - IEC 62040-3; UL 924 and OUST category |
| Line-Interactive/Smart Active efficiency | up to 98.5% |
| Noise (at 1 m) | 65 dBA |
| Remote signals | dry contacts (configurable) |
| Operating temperature | 32 – 104 °F / 0 – 40 °C |
| Relative humidity | <95% non-condensing |
| Transport | Pallet jack |
| DATA | |
| Weight | 1500 lbs / 680 kg |
| Dimensions (h w d) | 75 x 31.50 x 33.50 inches / 1900 x 800 x 850 mm |
