Reliable power for a sustainable world
Products: UPS

Sentinel Pro

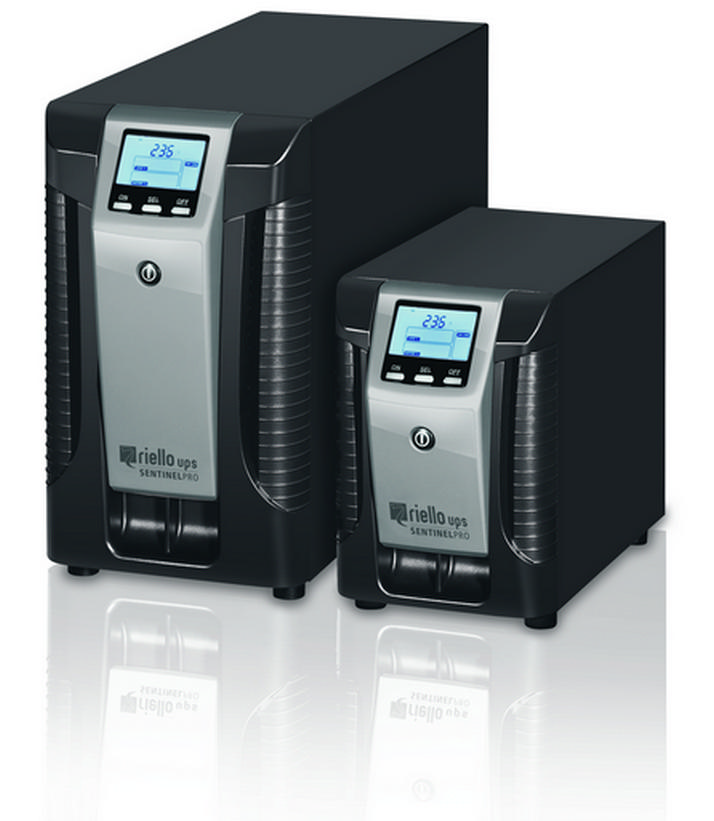

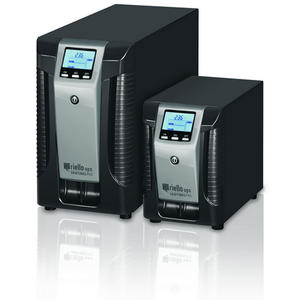

Sentinel Pro 700-3000 VA
  • Sentinel Pro 700-3000 VA

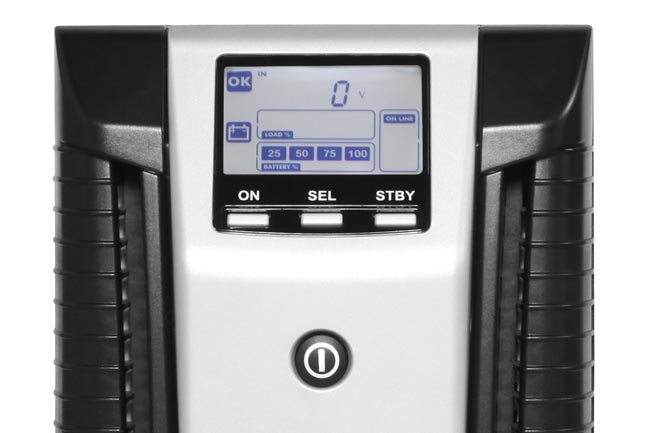

  • Sentinel Pro display
Power Range: 700 - 3000 VA
1:1

Highlights

Sentinel Pro has a unique, modern design and improved performance created by the Riello UPS research and development team. Sentinel Pro uses ON LINE double conversion technology, resulting in the highest levels of reliability and maximum protection for critical loads such as servers, and IT and voice/data applications.

For business continuity applications requiring long battery runtimes, battery autonomy can be extended up to several hours using ER models fitted with more powerful battery chargers.

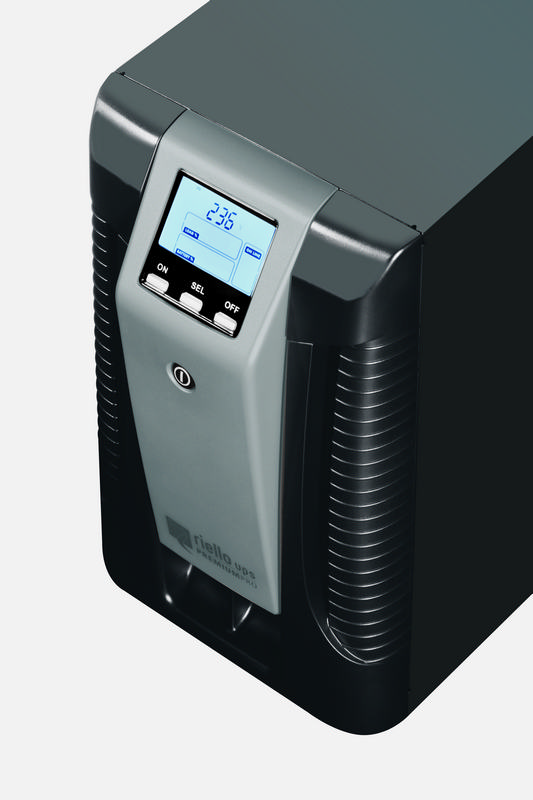

The front display panel has been entirely redesigned, adding an LCD display that shows the input and output voltages, battery readings and UPS operating status information. The inverter and the microprocessor control stage has been completely redesigned to provide increased efficiency and greater configuration options.

Maximum expandability: the Sentinel Pro is supplied as standard with a USB port and an expansion slot for protocol conversion or relay contacts boards. With energy savings in mind, Sentinel Pro is also fitted with a shut-off button to reduce energy consumption to zero during prolonged periods of inactivity (ECO LINE). Sentinel Pro is available in 700 VA, 1000 VA, 1500 VA, 2200 VA and 3000 VA models.

Request Information »

Videos

FEATURES

  • Filtered, stabilised and reliable voltage: double conversion ON LINE technology (VFI compliant with IEC 62040-3) with filters for the suppression of atmospheric disturbances;
  • High overload capability (up to 150%)
  • Programmable Auto-restart when mains is restored;
  • Battery start up (Cold Start);
  • Power factor correction (UPS input power factor, close to 1);
  • Wide input voltage tolerance range (from 140 V to 276 V) without battery intervention;
  • Runtime extendable up to several hours;
  • Fully configurable using UPS Tools configuration software;
  • Highly reliable batteries (automatic and manually-activated battery test);
  • High level of UPS reliability (total microprocessor control);
  • Low impact on the mains (sinusoidal take up).

ADVANCED COMMUNICATION

  • Multi-platform communication for all operating systems and network environments: PowerShield3 supervision and shutdown software for Windows operating systems 10, 8, 7, Hyper-V, 2019, 2016, 2012, and previous versions, Mac OS X, Linux, VMWare ESXi, Citrix XenServer and other Unix operating systems;
  • UPS Tools configuration and customisation software supplied as standard;
  • RS232 serial port and opto-isolated contacts;
  • USB port;
  • Slot for communications boards.

2 YEAR WARRANTY

Users Guides

User's manual Sentinel Pro

Select File Language:
en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

User's manual Sentinel Pro

For Serial number MZ01VOD20001 and following

Select File Language:
en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

User's manual UPSTools 3.0

RM908 Rev01

Download_all_riello

Brochures and data sheets

Sentinel Pro

700-3000 VA

Select File Language:
en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Windows

UpsTools 3.0.0 for Windows

Configuration software for Xp, 2003, Vista, 7, 8.x ,10

Download_all_riello

Certifications

Conformità CEI 0-16

Indicazioni per il rispetto della compatibilità alla norma per la media tensione

en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model
PDF
RTF
Models SEP 700 A3
INPUT
Rated power 700 VA
Voltage 220 / 230 / 240 V
Voltage tolerance 230 V ±20%
Frequency 50 / 60 Hz
Frequency tolerance 50 Hz ±5% / 60 Hz ±5%
Power factor >0.99
Current distorsion ≤7%
BY PASS
Voltage tolerance 180 / 264 V
Frequency tolerance Frequency selected (from ±1.5 Hz to ±5 Hz configurable)
OUTPUT and INVERTER OUTPUT
Rated power 700 VA
Active power 630 W
Number phases 1
Crest factor (Ipeak/Irms) 3 : 1
Waveform Sinusoidal
Frequency Selectable: 50 Hz or 60 Hz or self-learning
Voltage distortion with non-linear load <4%
Voltage distortion with linear load <2%
OVERLOAD TIMES
Load = 150% 1 sec.
Load = 125% 5 sec.
BATTERIES
Type VRLA AGM maintenance-free lead based; Supercaps
Typical recharge time 2-4 h
ENVIRONMENTAL
Color Black
Communication USB / DB9 with RS232 and contacts / Slot for communications interface
Accessories provided Power cable, IEC-IEC cable, USB cable, safety manual, quick start guide
Surge capability 300 J
Marks CE, GS/NEMKO
Line-Interactive/Smart Active efficiency 98%
Noise (at 1 m) <40 [bBA] (ECO Mode)
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC 62040-3 VFI - SS - 111
DATA
Weight 10.9 kg
Dimensions (h w d) 235x158x422 mm
