Reliable power for a sustainable world
Products: UPS

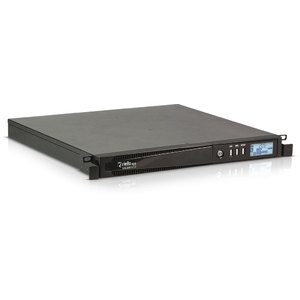

Vision Rack

Power Range: 800 - 1100 VA
1:1

Highlights

Rackmount-style 800 VA or 1100 VA line interactive uninterruptible power supply which protects against power failures and incorporates an automatic voltage stabiliser that balances sags and power surges.

Designed for use with storage servers, peripherals, and network hardware, the Vision Rack features a special EnergyShare socket that enables load-shedding to extend the battery runtime available for more critical loads.

Request Information »

Videos

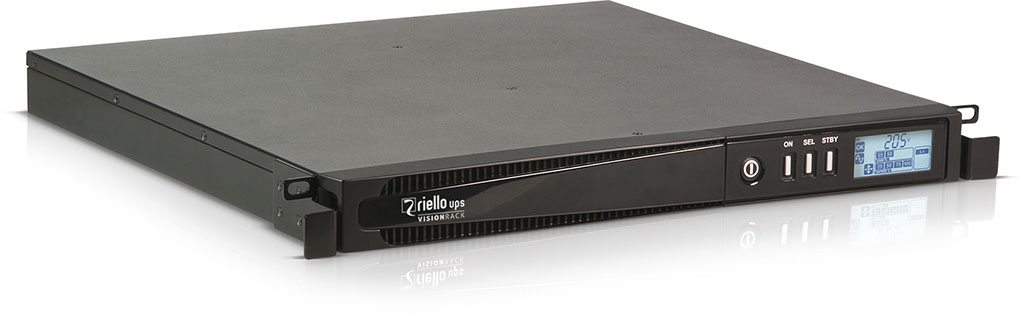

This is the rackmount-style version of our popular Vision INE INTERACTIVE UPS system. Available in either 800 VA or 1100 VA versions, the Vision Rack is an easy-to-use plug and play power supply suitable for servers, peripherals, and network backup systems.

As well as protecting against blackouts, its automatic voltage stabiliser smooths out potentially damaging sags and surges to the mains supply.

Simple plug and play installation plus a backlit LCD display panel are just two of the Vision Rack’s user-friendly features. Another is a Cold Start function where you can start up the UPS even if there isn’t any mains electricity available.

Operating efficiency of up to 98% minimises energy waste and power consumption. While load-shedding is possible thanks to a special EnergyShare socket, meaning you can shut down less sensitive devices and prioritise battery runtime for more critical loads.

Easily integrates with the free Riello UPS communications software PowerShield3 so each connected device can be safely shut down.

  • Automatic voltage stabilisation reduces risk of sags, surges, and brownouts
  • Up to 98% efficiency
  • EnergyShare socket allows load-shedding to extend battery runtime for critical loads
  • Plug and play installation rackmount-style UPS

Users Guides

User's manual Vision Rack

Select File Language:
en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

User's manual UPSTools 3.0

RM908 Rev01

Download_all_riello

Brochures and data sheets

Vision Rack

800-1100 VA

Select File Language:
en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Windows

UpsTools 3.0.0 for Windows

Configuration software for Xp, 2003, Vista, 7, 8.x ,10

Download_all_riello
Technical specifications of the model
PDF
RTF
Models VSR 800
INPUT
Rated power 800 VA
Voltage 220 / 230 / 240 V
Frequency 50 / 60 Hz with automatic selection
Frequency tolerance ±5% Hz (3% to 10% configurable)
OUTPUT and INVERTER OUTPUT
Rated power 800 VA
Active power 640 W
Waveform Sinusoidal
Frequency 50 or 60 Hz with automatic selection
BATTERIES
Type VRLA AGM maintenance-free lead based
Typical recharge time 4-6 h
ENVIRONMENTAL
Color Black
Protections Overload - short circuit - overvoltage - undervoltage - temperature - excessive low battery
Noise (at 1 m) <50 [dBA]
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Output sockets 4 IEC 10A
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
DATA
Weight 12 kg
Dimensions (h w d) 1Ux19"x420 mm
