Products: UPS

iPlug

iPlug

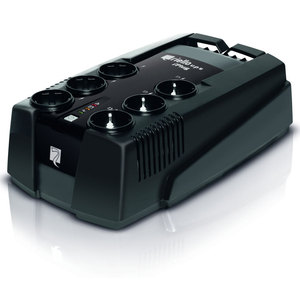

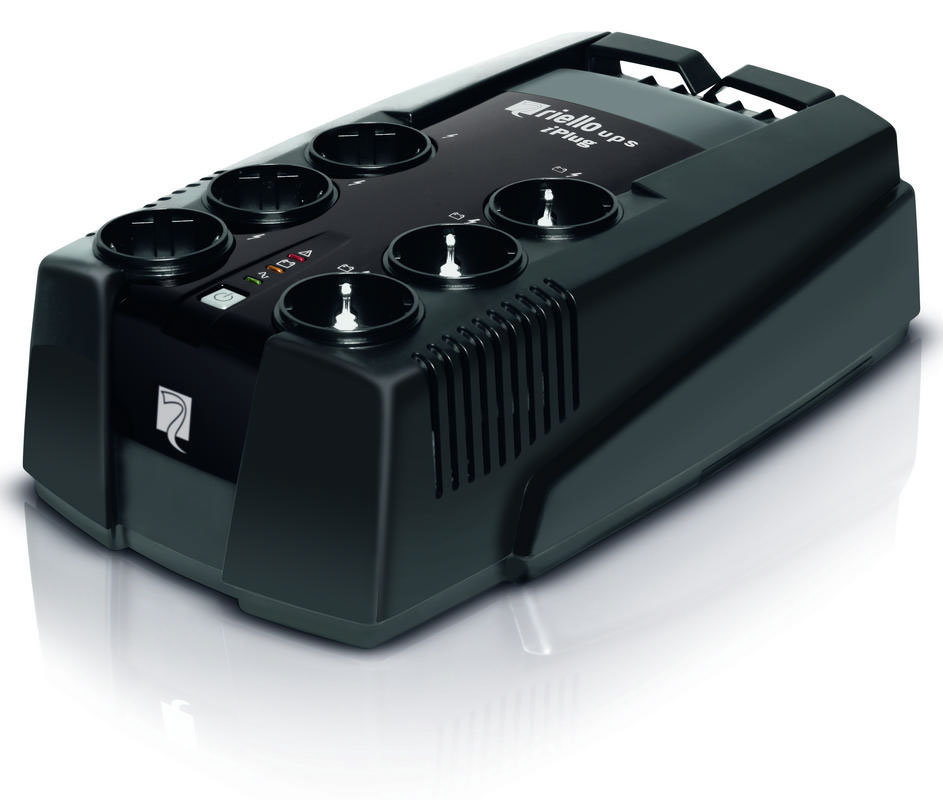

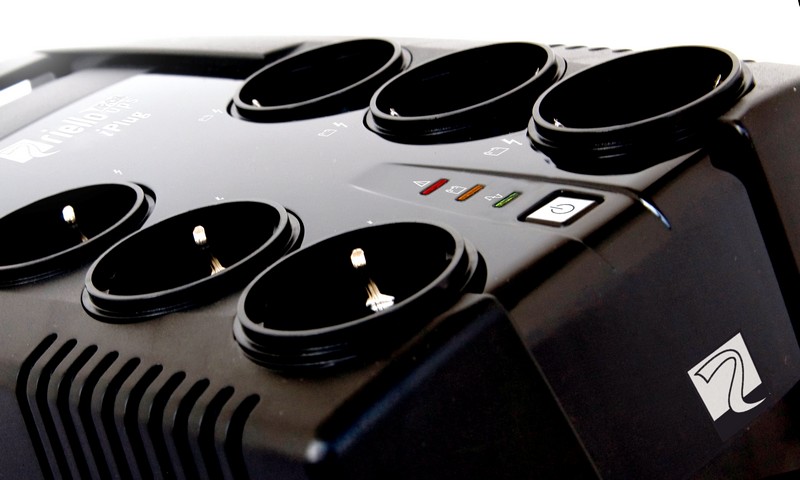

  • iPlug - socket view
  • iPlug - rear view
Power Range: 600 - 800 VA
1:1

Versatile, robust and contemporary design.

The iPlug series is the ideal solution for household, and small home office systems. Its compact size and versatility - push-button operation, LED status panel and user-replaceable batteries - make iPlug easy to install within a domestic environment to protect systems from surges and blackouts. When mains power fails the load is powered by the inverter and built-in battery. PowerShield³ UPS monitoring and control software can be used for an orderly unattended shutdown of IT systems.

Request Information »

Videos

FEATURES

  • ECO LINE energy efficient product
  • Compact, ergonomic design
  • 5 sockets with battery backup
  • 3 sockets with surge protection only
  • Cold start capability to power up the UPS without mains power
  • User replaceable batteries
  • USB interface for remote monitoring
  • Power cable included
  • Protection from short-circuits
  • Auto restart - when the mains returns after battery exhaustion
  • GS/Nemko safety marking
  • Available with French (2P+T), English, Schuko and Italian outlets.

ADVANCED COMMUNICATION

  • PowerShield3 supervision and shutdown software for Windows operating systems 10, 8, 7, Hyper-V, 2019, 2016, 2012, and previous versions, Mac OS X, Linux
  • Plug and Play function.

2 YEAR WARRANTY

Users Guides

User's manual iPlug

Select File Language:
en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh

Brochures and data sheets

iPlug

600-800 VA

Select File Language:
en
it
de
es
fr
hu
nl
pl
ro
ru
vn
zh
Technical specifications of the model
PDF
RTF
Models IPG 600
INPUT
Rated power 600 VA
Voltage 220 / 230 / 240 V
Voltage tolerance 230 V (+20/-25%)
Frequency 50 / 60 Hz with automatic selection
OUTPUT and INVERTER OUTPUT
Rated power 600 VA
Active power 360 W
Number phases 1
Wave form on battery Pseudo Sinusoidal
Frequency on battery operation 50 or 60 Hz (+/- 1%)
BATTERIES
Type VRLA AGM maintenance-free lead based
Typical recharge time 6-8 h
ENVIRONMENTAL
Color Black
Communication USB
Accessories provided power cable, user guide
Marks CE; GS/NEMKO on Schuko version
Operating temperature 0 °C - +40 °C
Relative humidity 5-95% non-condensing
Output sockets 6 sockets (Schuko or Italian or French or British) + 2 IEC 320 C13
Standards European directives: L V 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant
DATA
Weight 3.7 kg
Dimensions (h w d) 99x185x313 mm
